graph LR
A[用户输入] --> B(前端界面)
B --> C{查询类型}
C -->|文本| D[文本处理模块]
C -->|语音| E[语音识别模块]
D & E --> F[检索引擎]
F --> G[Elasticsearch]
F --> H[向量数据库]
G & H --> I[结果融合]
I --> J[大模型生成]
J --> K[结果输出]
Elasticsearch索引配置：
from elasticsearch import Elasticsearch
es = Elasticsearch()
es.indices.create(
index="enterprise_knowledge",
body={
"mappings": {
"properties": {
"title": {"type": "text"},
"content": {"type": "text", "analyzer": "ik_max_word"},
"embedding": {"type": "dense_vector", "dims": 768},
"department": {"type": "keyword"},
"update_time": {"type": "date"}
}
}
}

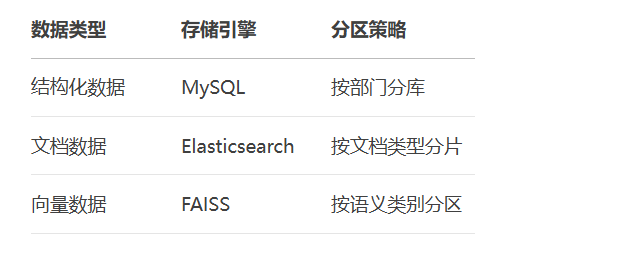

)数据分区策略：
import pandas as pd from langchain.text_splitter import RecursiveCharacterTextSplitter def preprocess_data(file_path): # 读取数据 df = pd.read_csv(file_path) # 清洗数据 df['content'] = df['content'].apply( lambda x: re.sub(r'[^\w\s]', '', x) ) # 文本分块 text_splitter = RecursiveCharacterTextSplitter( chunk_size=500, chunk_overlap=50 ) chunks = text_splitter.split_text(df['content']) # 生成嵌入 embeddings = embed_model.encode(chunks) return chunks, embeddings
def hybrid_search(query, top_k=5):
# 关键词检索
keyword_results = es.search(
index="enterprise_knowledge",
body={
"query": {
"match": {
"content": query
}
},
"size": top_k
}
)
# 语义检索
query_embedding = embed_model.encode([query])[0]
_, semantic_indices = faiss_index.search(
np.array([query_embedding]), top_k
)
semantic_results = [doc_db[i] for i in semantic_indices[0]]
# 结果融合
combined_results = fuse_results(
keyword_results,
semantic_results
)
return combined_results[:top_k]from transformers import pipeline
qa_pipeline = pipeline(
"text-generation",
model="deepseek-ai/deepseek-llm-7b-chat",
device_map="auto"
)
def generate_answer(query, context):
prompt = f"""
基于以下企业知识库信息：
{context}
请回答用户问题：
{query}
要求：
1. 回答简洁专业
2. 引用知识库中的具体条款
3. 如信息不足，请明确说明
"""
response = qa_pipeline(
prompt,
max_new_tokens=300,
temperature=0.3
)
return response[0]['generated_text']多级缓存机制：
from redis import Redis
from functools import lru_cache
redis_cache = Redis(host='localhost', port=6379, db=0)
@lru_cache(maxsize=1000)
def cached_search(query):
# 内存缓存
if query in local_cache:
return local_cache[query]
# Redis缓存
redis_key = f"search:{hash(query)}"
if redis_cache.exists(redis_key):
return json.loads(redis_cache.get(redis_key))
# 实际检索
results = hybrid_search(query)
# 更新缓存
local_cache[query] = results
redis_cache.set(redis_key, json.dumps(results), ex=3600)
return resultsFAISS索引优化：
# 使用IVF索引加速 dimension = 768 nlist = 100 # 聚类中心数 quantizer = faiss.IndexFlatIP(dimension) index = faiss.IndexIVFFlat(quantizer, dimension, nlist) # 训练索引 index.train(embeddings) index.add(embeddings)
上下文压缩技术：
def compress_context(context, query):
# 提取关键句子
from sumy.parsers.plaintext import PlaintextParser
from sumy.nlp.tokenizers import Tokenizer
from sumy.summarizers.lsa import LsaSummarizer
parser = PlaintextParser.from_string(context, Tokenizer("english"))
summarizer = LsaSummarizer()
summary = summarizer(parser.document, sentences_count=3)
return " ".join([str(sentence) for sentence in summary])答案验证机制：
def validate_answer(answer, context):
# 使用NLI模型验证一致性
nli_pipeline = pipeline(
"text-classification",
model="roberta-large-mnli"
)
result = nli_pipeline(
f"{context} [SEP] {answer}",
candidate_labels=["entailment", "contradiction", "neutral"]
)
if result[0]['label'] == 'contradiction':
return "抱歉，根据知识库我无法确认该信息，请咨询相关部门"
return answer
<div class="chat-container"> <div class="chat-history" id="history"></div> <div class="input-area"> <input type="text" id="query-input" placeholder="输入问题..."> <button id="voice-btn">🎤</button> <button id="send-btn">发送</button> </div> <div class="feedback"> <span>回答有帮助吗？</span> <button class="feedback-btn" data-value="1">👍</button> <button class="feedback-btn" data-value="0">👎</button> </div> </div>
// 语音识别功能
const recognition = new webkitSpeechRecognition();
recognition.lang = 'zh-CN';
document.getElementById('voice-btn').addEventListener('click', () => {
recognition.start();
});
recognition.onresult = (event) => {
const transcript = event.results[0][0].transcript;
document.getElementById('query-input').value = transcript;
};# 反馈处理服务
@app.route('/feedback', methods=['POST'])
def handle_feedback():
data = request.json
log_feedback(data['question'], data['answer'], data['rating'])
if data['rating'] < 0.5: # 负面反馈
retrain_queue.add({
'question': data['question'],
'correct_answer': data.get('corrected_answer')
})
return jsonify({"status": "success"})apiVersion: apps/v1 kind: Deployment metadata: name: knowledge-qa spec: replicas: 3 selector: matchLabels: app: qa template: metadata: labels: app: qa spec: containers: - name: qa-server image: qa-system:v2.3 ports: - containerPort: 8000 resources: limits: nvidia.com/gpu: 1 requests: memory: "8Gi" cpu: "2" --- apiVersion: v1 kind: Service metadata: name: qa-service spec: selector: app: qa ports: - protocol: TCP port: 80 targetPort: 8000
5.2 监控告警系统
Prometheus监控指标：
from prometheus_client import start_http_server, Summary, Counter
# 定义指标
REQUEST_LATENCY = Summary('request_latency', 'API response latency')
REQUEST_COUNT = Counter('request_count', 'Total API requests')
ERROR_COUNT = Counter('error_count', 'System errors')
@app.before_request
def before_request():
request.start_time = time.time()
@app.after_request
def after_request(response):
latency = time.time() - request.start_time
REQUEST_LATENCY.observe(latency)
REQUEST_COUNT.inc()
if response.status_code >= 500:
ERROR_COUNT.inc()
return response自动化更新流水线：
graph TB A[新文档接入] --> B[自动化预处理] B --> C[增量索引更新] C --> D[嵌入模型训练] D --> E[在线AB测试] E -->|效果提升| F[生产环境部署]
模型热更新实现：
def load_new_model(model_path): global qa_pipeline new_pipeline = load_model(model_path) # 原子切换 with model_lock: old_pipeline = qa_pipeline qa_pipeline = new_pipeline # 清理旧模型 unload_model(old_pipeline)
问题场景：文档更新导致检索结果过时
解决方案：
# 实时索引更新监听
from watchdog.observers import Observer
from watchdog.events import FileSystemEventHandler
class DocsHandler(FileSystemEventHandler):
def on_modified(self, event):
if event.src_path.endswith('.md'):
update_document_in_index(event.src_path)
observer = Observer()
observer.schedule(DocsHandler(), path='docs/', recursive=True)
observer.start()问题场景：Llama Factory微调与vLLM部署结果不一致
解决方案：
def align_inference_engines():
# 统一推理配置
vllm_config = {
"tensor_parallel_size": 2,
"dtype": "float16",
"gpu_memory_utilization": 0.9
}
# 量化对齐
if use_quantization:
vllm_config["quantization"] = "awq"
set_quantization_params("awq", bits=4, group_size=128)
# 采样参数标准化
sampling_params = {
"temperature": 0.7,
"top_p": 0.9,
"max_tokens": 256
}
graph LR A[基础问答系统] --> B[多模态支持] B --> C[个性化知识图谱] C --> D[自动化知识发现] D --> E[预测性智能助手]
注：系统完整实现约需15,000行代码，建议使用LangChain框架加速开发，结合Prometheus+Granfana实现全链路监控。更多AI大模型应用开发学习内容视频和资料尽在聚客AI学院。
